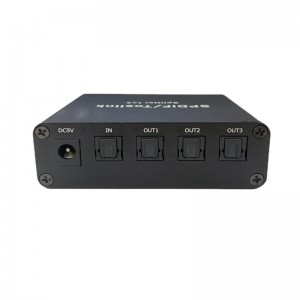

SPDIF/Toslink Splitter 1x3

FEATURES
One way of optical fiber signals switch to three sets of SPDIF/TosLink signal receiving device.
Audio format support : LPCM2.0/DTS/Dolby-AC3
Support signal retiming
Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.
The input control can through R/M and also can directly press the button
Support last time working state memory when power off
Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
LED status indication
No loss of quality
Installs in minutes
Need DC5V/1000mA power supply

The accessories with the machines lists：

1. 5V Power Adaptor
2. Operation Manual

1. To use the optical fiber cable to connect the optical fiber signal source (such as blue-ray player, the computer and so on) with the splitter input.
2. To let the splitter output port connected to the optical fiber signal receiver (such as amplifier, home theater and so on) by using the optical cable.
3. Connect 5V power supply to the matrix DC input port.

SPECIFICATIONS:
Support audio format…………………………………………………LPCM2.0/DTS/Dolby-AC3
Peak wavelength………………………………………………650nm
Max baud rate………………………………………………………………………16Mbps
Output cable distance ………………≤40m(Use the optical fiber cable loss less the 0.2Db/m )
Max working current…………………………………………………………………100mA
Power adapter format…………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1000mA
Operating Temperature range……………………………………………………………… (0 to +40℃)
Operating Humidity range……………………………………………5 to 90%RH (No Condensation)
Dimension (L x W x H)…………………………………………………………84x72x28 (mm)
Weight…..……………………………………………………………………………………112g
