Broadcast level 3GSDI distributor one to two HD

I.Introduction

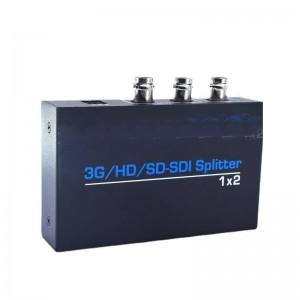

1×2 SDI splitter distributes allows1SDI, HD-SDI or 3G-SDI video source to2 SDI/HD-SDI/3G-SDI displays simultaneously.This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances.

II.Features

1. 1. 1 SDI input signal split to 2 SDI sink devices.
2. 2. Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.
3. 3. Built-in cable equilibrium, clock recovery and drive.
4. 4. Supports resolutions up to 1920x1080@60Hz.
5. 5. Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.
6. 6. Supports 5V voltage input.

III.Package

1. 1. 1x2 SDI Splitter --------------------------------------------------------------------------- 1PCS
2. 2. 5V1A DC Power Supply adapter ------------------------------------------------------- 1PCS
3. 3. Operation Manual ------------------------------------------------------------------------- 1PCS

IV.Specifications

1. 1. Frequency Bandwidth                3Gbps
2. 2. SDI Splitter Input Ports               1 xBNC Femaleinputport
3. 3. SDI Splitter Output Ports              2 xBNC Femaleoutputports
4. 4. Power Supply                       DC5V1A
5. 5. ESD Protection Human Body Model:    ± 8kV (air-gap discharge)

± 4kV (contact discharge)

1. 6. Dimensions (mm)                   65(W) X107 (D) X25 (H)
2. 7. Weight                            195g
3. 8. Operating Temperature              0°C ~ 40°C / 32°F ~ 104°F
4. 9. Storage Temperature             -20°C ~ 60°C / -4°F ~ 140°F
5. 10. Relative Humidity                  20 ~ 90% RH (Non-condensing)
